Portable Monitor 23.8" ZD1

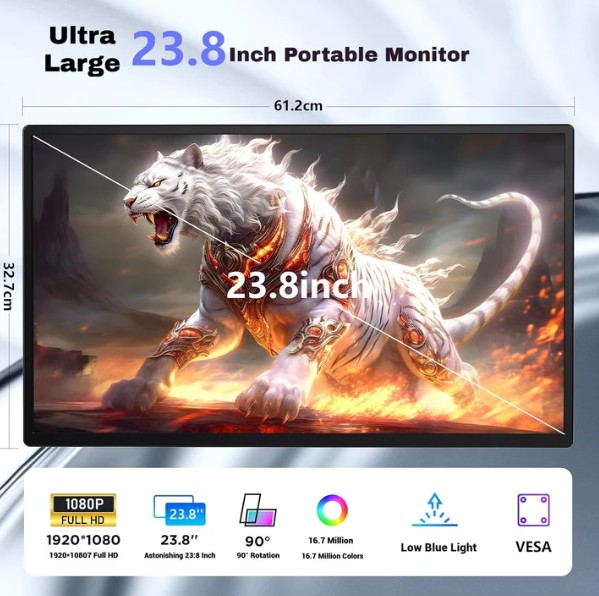

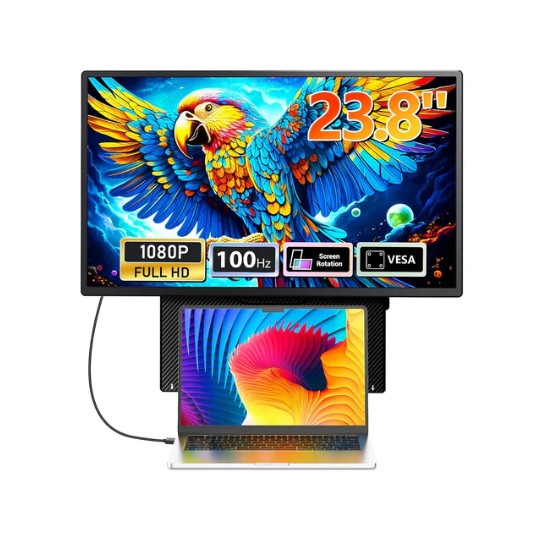

Upgrade your workspace or entertainment area with this stunning 23.8-inch Full HD monitor. Immerse yourself in sharp, vibrant visuals thanks to its crisp 1080P resolution and smooth 100Hz refresh rate, making every detail pop whether you're working, gaming, or streaming. The ultra-slim bezel and sleek black finish add a modern touch to any desk, while the fully adjustable screen rotation and VESA mount compatibility provide maximum flexibility for your setup. Experience comfort, style, and performance—perfect for productivity and play.

D1 is a novel structure, rotatable, free lifting, storable, multi-scene, multi-application, portable desktop display; D1 is more than a screen, is a set of free lifting, rotatable, removable, storable, portable out of the car in one of the integrated work platform, redefined the desktop display

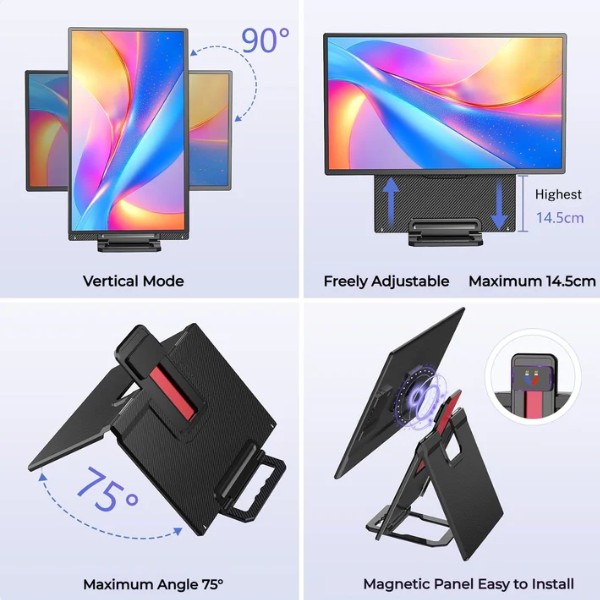

1.The screen is installed in the bracket, support 0-145MM free hovering, just push to accurately adjust the height, say goodbye to the fixed perspective, free your

cervical spine;

2. Reasonable ergonomic design, the screen supports 0 to 75 degrees multi-angle adjustment, sedentary office can also maintain an elegant posture, relieve eye

fatigue;

3. Screen support 90 degrees rotation, horizontal and vertical screen free switching, so that the office and reading without obstacles to free switching;

4. The screen and the bracket support ‘zero folding storage mode’ screen,After the screen is removed, the bracket is a storage box, the thickness of the product

after storage is only 32.8MM, thin and portable, release desktop space;

5. The bracket not only supports the screen multi-angle display, while protecting the screen, but also handheld to go out and carry, flexible and versatile, efficient with the travelling;

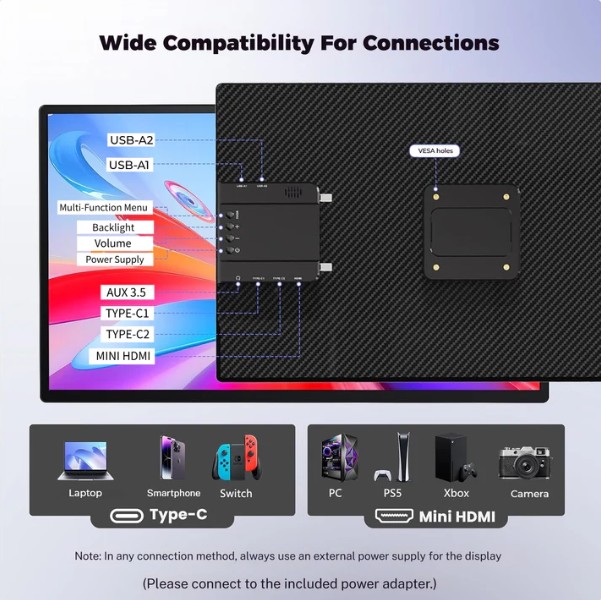

6. The screen comes with a full-featured TYPE-C*2 +MINI HDMI + AUX3.5 headphones + USB-A * 2 interface external expansion, interface complete, strong compatibility, data transmission faster and more stable, you can seamlessly switch office and entertainment.

7. The screen is removable design, the screen comes with VESA standard 75MM * 75MM M4 bracket mounting holes, adapted to the market common desktop

bracket, can be freely combined with the state of the display, strong versatility.

D1 FHD：

I. Product Description.

Function Support:

1. Resolution:1920*1080P 100HZ FHD Full HD

2. Product interface: TPYE-C 2 full function + MINI HDMI + AUX 3.5 + USB-A

2PCS ;)

3. Panel: IPS wide viewing angle, 300 CD/㎡.

4. Features: single screen with one line pass function.

5. Product power consumption: less than or equal to 20W

6. With 1PCS speaker

7. Screen size: 23.8 inches

Second, compatibility

1. Resolution compatibility: 640*480-1920*1080P ;)

2. Colour format: RGB;

3. Refresh frequency: 100HZ;

4. TPYE-C version: USB3.1 (via DP protocol), charging PD3.0 100W (20V/5A MAX)

5. Support for MAC/Windows/Android/Linux/Chrome OS system;

6. Product size: 612*327*32.8MM

7. Product weight: 2.7KG

8. Product material: PC + ABS + aluminium alloy

9. Colour Gamut: NTSC 80%

D1 QHD:

I. Product Description.

Function Support:

1. Resolution:2560*1440P 180HZ QHD 2.5K

2. Product interface: TPYE-C 2 full function + MINI HDMI + AUX 3.5 + USB-A 2PCS ;)

3. Panel: IPS wide viewing angle, 300 CD/.

4. Features: single screen with one line pass function.

5. Product power consumption: less than or equal to 25W

6. With 1PCS speaker

7. Screen size: 23.8 inches

Second, compatibility

1. Resolution compatibility: 640*480-2560*1440P ;)

2. Colour format: RGB;

3. Refresh frequency: 180HZ;

4. TPYE-C version: USB3.1 (via DP protocol), charging PD3.0 100W (20V/5A MAX) 5.

Support MAC/Windows/Android/Linux/Chrome OS systems;

6. Product size: 612*327*32.8MM

7. Product weight: 2.7KG

8. Product material: PC + ABS + aluminium alloy

9. colour gamut: NTSC 81%

D1 UHD:

I. Product Description.

Function Support:

1. Resolution:3840*2160P 60 HZ UHD 4K

2. Product interface: TPYE-C 2 full function + MINI HDMI + AUX 3.5 + USB-A 2PCS ;)

3. Panel: IPS wide viewing angle, 250 CD/㎡.

4.Features: Single screen with one line pass function.

5. Product power consumption: less than or equal to 25W

6. With 1PCS speaker

7. Screen size: 23.8 inches

Second, compatibility

1. Resolution compatibility: 640*480-3840*2160P ;)

2. Colour format: RGB;

3. Refresh frequency: 60HZ;

4. TPYE-C version: USB3.1 (via DP protocol), charging PD3.0 100W (20V/5A MAX) 5.

Support MAC/Windows/Android/Linux/Chrome OS systems;

6. Product size: 612*327*32.8MM

7. Product weight: 2.7KG

8. Product material: PC + ABS + aluminium alloy

9. colour gamut: NTSC 81%
